    WST-18E embedded electric steerable thruster

    Energy efficient and with excellent station keeping and manoeuvring capabilities.

    Contact us

    WST-18E - energy efficient and fast

    The WST-18E is a steerable thruster with an embedded electric motor. Equipped with the latest technologies, it is extremely energy efficient and environmentally friendly.

    Because the WST-18E has excellent dynamic positioning, station keeping, manoeuvring capabilities, and high thrust performance, it is a great choice for vessels that use electric propulsion. For example, for the following vessel types:

    • Service offshore vessels (SOVs, CSOVs)
    • Full electric and hybrid electric tugs
    • Offshore support vessels (OSVs)
    • Platform supply vessels (PSVs)
    • Multi-purpose support vessels (MPVs)
    • Electric ferries (RoPax, RoRo).

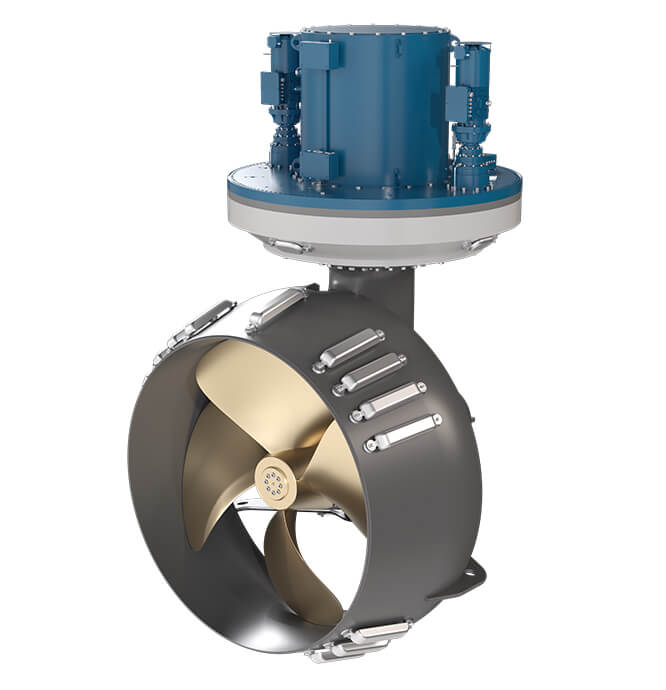

    3D illustration of the WST-18E

    Watch this video to learn more about Wärtsilä thrusters and propulsion controls for heavy-duty dynamic positioning:

    WST-18E - key features

    • A small footprint. The permanent magnet or asynchronous E-motor embedded in the thruster minimises the height of the WST-18E. That is why it can also be installed in a height restricted space, such as below the working deck of a vessel.
    • Eco-efficiency. VGP2013 compliant or optional zero pollution sealing systems make this thruster environmentally friendly.
    • The optional tilted propeller gearbox reduces the thrust loss caused by interactions with the vessel hull and other thrusters.
    • There is an option for fast electric steering and optimised gears for fast power ramp-up. Thanks to these, its DP and station keeping capabilities meet the highest standards.

    WST-18E steerable thruster range

    Find the technical data for the WST-18E in the table:

    Power

    1925

    [kW]

    Input speed

    1000

    [rpm]

    Propeller type

    FPP



    Propeller dia.

    2200/2400

    [mm]

    Nozzle
    (option)

    Optimized for bollard pull
    (Optimized for free sailing)



    Gearbox
    (option)

    Straight
    (8° Tilted)



    Weight

    20000-21500*

    [kg]

    *approximate weight depending on execution; without E-motor and lubrication oil
