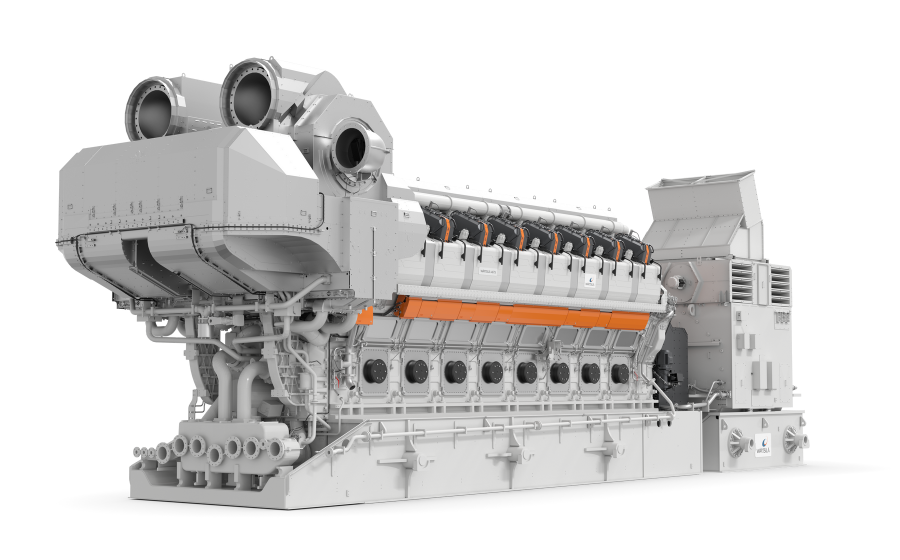

The Wärtsilä 46TS-DF is a four-stroke dual fuel engine generating set offering exceptional output, efficiency, and flexibility. Evolved from a long line of proven and reliable Wärtsilä engines with millions of running hours, this large-bore engine has a 2-stage turbocharging system that enables superior performance, even in challenging environmental conditions.
Wärtsilä 46TS is designed for balancing renewables and to operate cost-efficiently on baseload. The engine’s improved output and efficiency save fuel and costs while keeping emissions to a minimum. Its fast-starting capability with unlimited starts and shutdowns maximise your revenue streams. The DF technology allows instant switching to alternative fuels, should price instability or delivery challenges affect the use of the primary fuel. Wärtsilä 46TS is based on futureproof technology that can run on sustainable fuels in the future.
from start to full load
Electrical efficiency
mechanical output
| Wärtsilä 46TS-DF dual fuel engine generating set | ||||
| Cylinder configurations | 20 V | 18 V | ||
| Cylinder bore | 460 mm | |||
| Piston stroke | 580 mm | |||
| Engine speed | 600 rpm | |||
| Performance 1 | ||||
| Gas (16V, 18V) | LFO (16V, 18V) | |||
| Rated electrical power | 20.38 MW 50/60 Hz | 22.93 MW 50/50 Hz | 20.38 MW 50/60 Hz | 22.93 MW 50/60 Hz |
| Electrical efficiency (%) | 50.7% 50/60 Hz | 50.7% 50/60 Hz | 49.0% 50/60 Hz | 49.0% 50/60 Hz |
| Heat rate (kJ/kWh) | 7 105 kJ/kWh 50/60 Hz | 7 105 kJ/kWh 50/60 Hz | 7 354 kJ/kWh 50/60 Hz | 7 354 kJ/kWh 50/60 Hz |
| Loading and unloading | ||||
| Fast connection to grid and full load | 120 seconds | |||
| Normal connection to grid and full load | 5 minutes | |||
| Regular start time | 30 seconds | |||
| Shut-down time | 120 seconds | |||
| Ramp rate (hot, load/sec) | 1 % / second | |||
| Minimum Load | ||||
| Unit level | 10% | |||
| Plant level | Equal to minimum load of one unit | |||
| *1 Rated electrical power and electrical efficiencies are given at generator terminals at 100kPa ambient pressure, 25°C suction air temperature, and 30% relative humidity, and without engine-driven pumps. Power factor 1.0 (site). NOx emission level 90ppm @15% O2 dry. Electrical efficiency and heat rate with 5% tolerance according to ISO 3046-1. Gas LHV >28MJ/Nm3. Gas methane number >80. Site conditions, fuel and applicable emission limits may have an impact on performance figures. Please contact Wärtsilä for project-specific performance data.. |
| Disclaimer: The information contained herein is provided for informational purposes only and may not be incorporated, in whole or in part, into any agreement or proposal. No representation of any kind is made in respect of any information contained herein and Wärtsilä expressly disclaims any responsibility for, and does not guarantee, the correctness or the completeness of the information. The calculations and assumptions included in the information do not necessarily take into account all the factors that could be relevant in a particular case. Information herein shall not be construed as a guarantee or warranty of the performance of any Wärtsilä technology, equipment or installation. |
