Wärtsilä 34SG power optimised gas engine for power plants

Wärtsilä 34SG power optimised gas engine

The Wärtsilä 34SG power optimised is a four-stroke, spark-ignited, lean-burn gas engine generating set.

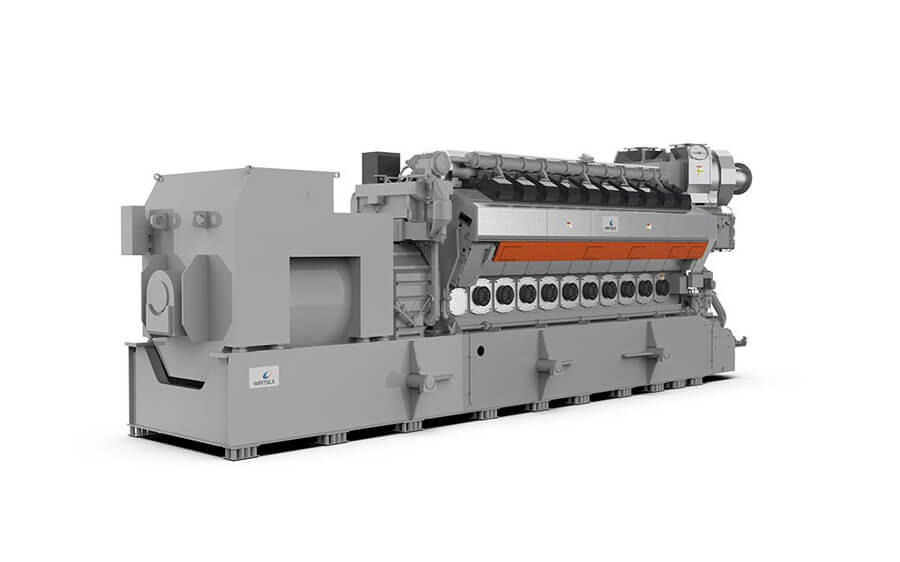

Wärtsilä 34SG balancer gas engine for power plants

The Wärtsilä 34SG power optimised gas engine is especially suitable for balancing renewable power generation. It provides flexible yet affordable balancing power generation and firming for energy systems with a growing or high share of renewables. It also offers unique fast-starting capability, which enables rapid response to fluctuations inherent to renewable energy. Wärtsilä engine power plants can be delivered both as EPC and Equipment Delivery contracts.

Key benefits of the Wärtsilä 34SG power optimised gas engine

High power density for balancing and peaking applications
No start cost, limitations nor degradation in number of starts
Minimal water consumption

Fast starting and loading capabilities: connects to grid in 30 seconds and reaches full load in 2 minutes
Runs on natural gas, biogas, synthetic methane and is capable of hydrogen blending

Ready for unmanned standby, remote control and 24/7 data streaming
Optimised performance and reliability supported by Wärtsilä Lifecycle solutions »

Customer stories

Centrica, UK

The rapid growth in renewable energy in the UK has increased the need for flexible power to balance the electricity grid. Wärtsilä has worked closely with energy and services company Centrica to provide the changing market with flexible energy, helping tackle the issues created by intermittent renewables and supporting the transition to a low-carbon energy system.
Read more

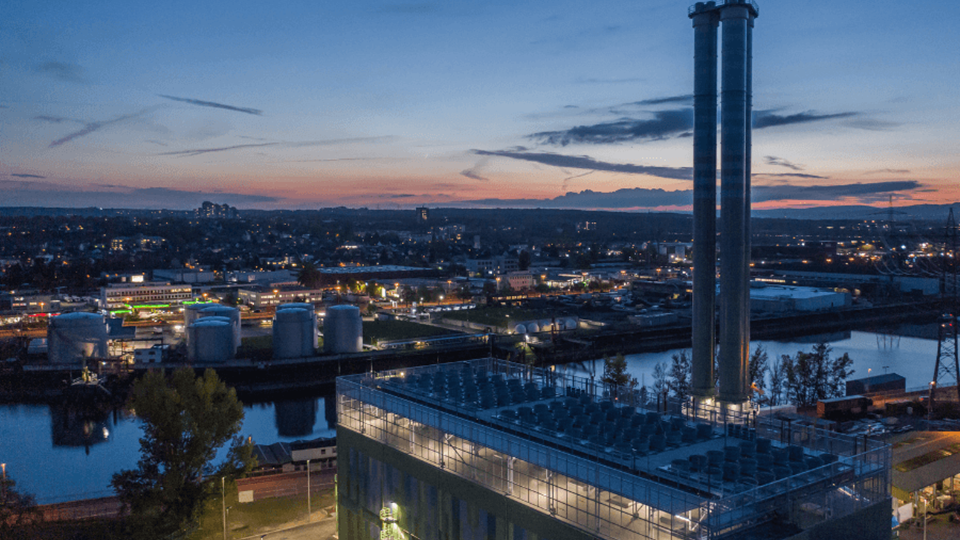

Kraftwerke Mainz-Wiesbaden AG

Flexible combined heat and power plant (CHP) in Germany –enabling KMW AG to operate profitably in the increasingly volatile power market and provide climate-friendly district heating to the community.
Read more

Our proudest numbers

2 min

to full load

47.6%

Electrical efficiency

10.8MW

Electrical power

Questions? Contact us

Technical data for the Wärtsilä 34SG power optimised gas engine

Wärtsilä 34SG power optimised gas engine - Power generation set
Cylinder configurations	20 V
Cylinder bore	340 mm
Piston stroke	400 mm
Engine speed	750 rpm (50 Hz), 720 rpm (60 Hz)
Performance *
Rated electrical power (kW)	10 777 (50 Hz) 10 368 (60 Hz)
Electrical efficiency (%)	47.6 (50 Hz) 47.5 (60 Hz)
Heat rate kJ/kWh	7 560 (50 Hz) 7 586 (60 Hz)
Loading and unloading
	Connected to grid	Full load
Regular start time (min)	< 2	< 5
Fast start time (min:sec)	00:30	< 2:00
Stop time (min)	1
Ramp rate (hot, load/min)	> 100%

* Rated electrical power and electrical efficiencies are given at generator terminals at 100kPa ambient pressure, 25°C suction air temperature and 30% relative humidity, and without engine driven pumps. Power factor 1.0 (site). Electrical efficiency with 5% tolerance. Site conditions, fuel and applicable emission limits may have an impact on performance figures. Please contact Wärtsilä for project-specific performance data. Emission figures for LBF must be evaluated case by case. Catalyst systems are designed based on project specific requirements. Certain fuel components are poisonous for catalyst elements. Maximum amount of these components to be limited in the fuel in applications where catalyst system is installed..
